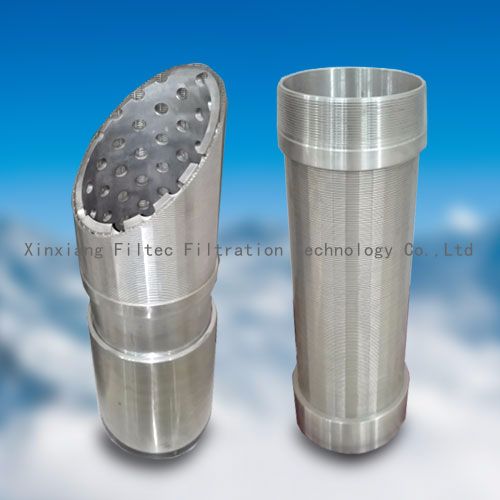

Johnson sand control screen pipe is usually made up of base pipe (perforated seamless steel pipe) or PVC pipe, combined with high precision wedge wire screen, in accordance with API standard.
1. Brief Introduction
Johnson sand control screen pipe is usually made up of base pipe (perforated seamless steel pipe) or PVC pipe, combined with high precision wedge wire screen, in accordance with API standard.
2. Parameter
Technical Parameter
Applicable code: contour welding stainless steel pipe (SY5182-87)
Specification and size is customized.
Material: 304, 321, 316L,904L, duplex steel 2205, duplex steel 2207, Monel, Ti.etc
2.2 Characteristic
V-profile structure can reduce the clog risk greatly to assure operation effectively and water filtration smoothly. Wedge slot can improve the back-washing regeneration ability.
High density, uniform slot ensures the high aperture ratio and no clogging and improves the production efficiency and extends well service life.
Wedge wire welds with all support rib firmly with high mechanical strength and can understand high pressure.
2.3 General Specification
Sand Control Screen （mm） ID（mm） OD（mm） OD (base pipe)
（mm）Rib Numbers Notes 60 63.1 76 60.3 18 73 75.8 89 73.0 20 89 91.7 105 88.9 24 114 117.2 130 114.3 30 127 130.3 143 127 34 140 142.7 155 139.7 36 168 171.6 184 168.3 44 178 181.1 194 177.8 46 194 197.2 210 193.7 50 219 222.7 235 219.1 56 245 248.5 261 244.5 58 273 278.0 291 273.0 66 340 345.0 358 339.7 80 419 424.0 437 419.1 100 Notes: All the above is just for reference. Customized is available.
