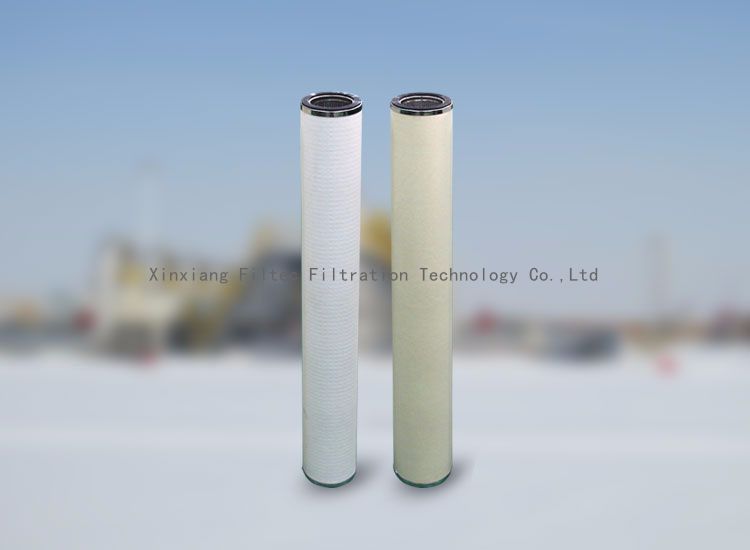

Filtration and Separation Element
产品介绍
1. Parameter:
Filtration Precision:0.3um
Flow Direction: from internal to external
Filter Element Material: Stainless Steel + combined glass fiber
End material: Stainless steel
Support material: Stainless Steel
Max. Operation Temperature: 120℃
Change-out Pressure Differential: 100-120KPa
Max. Collapse Pressure Differential:1MPa
2. Characterstic
Remove the trace solid and tiny fog droplet from handled gas with high efficiency and high precision (such as lubricant oil, ethylene glycol, water, etc), and protect downstream fine equipment.
Submicron glass fiber and special filter layer arrangement make the filter element with satisfied coalescence efficiency and lower initial pressure difference, higher dirty holding capacity and longer service life.
